◆ Simple and reliable installation
◆ High torsional stiffness, suitable for precision drive solutions
◆ Low installation height and space saving

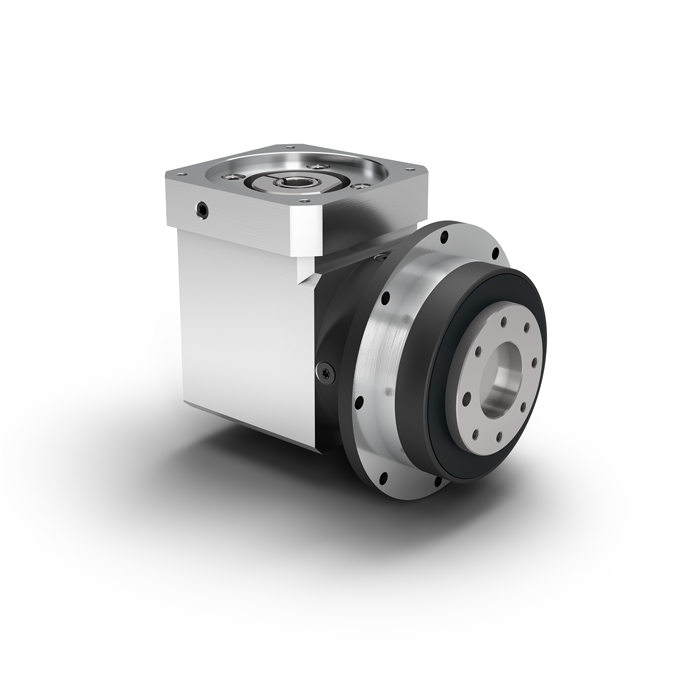

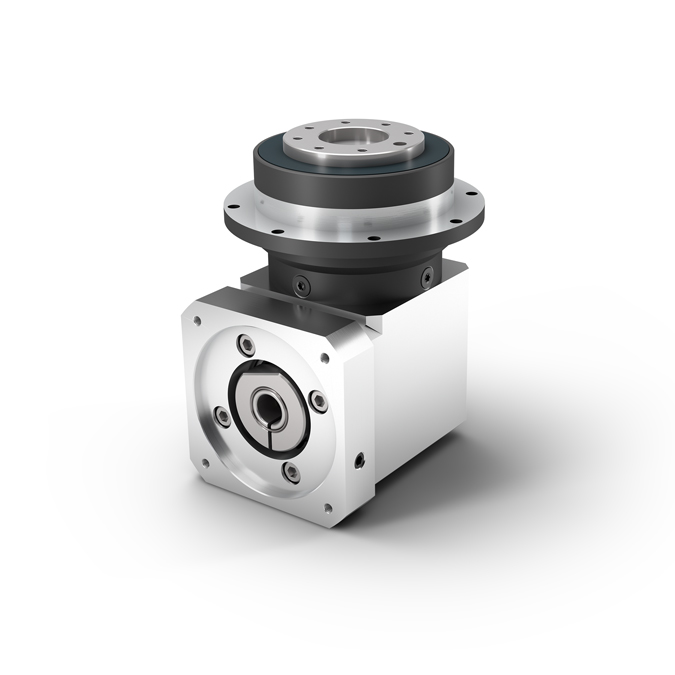

Even in the face of difficulties, we should break through the limitations and give play to innovative thinking. WPLFE is a right angle planetary reducer with a compact flange output shaft. It can save up to one-third of the space and has a five fold increase in torsional stiffness. With its standardized flange interface, the planetary reducer is easy to install. The built-in locating pin hole also provides additional security when fixing.
characteristic
High torsional stiffness for precision drive solutions
Fast and safe installation
Low installation height, space saving
High flexibility during installation
Lifetime lubrication, therefore maintenance free

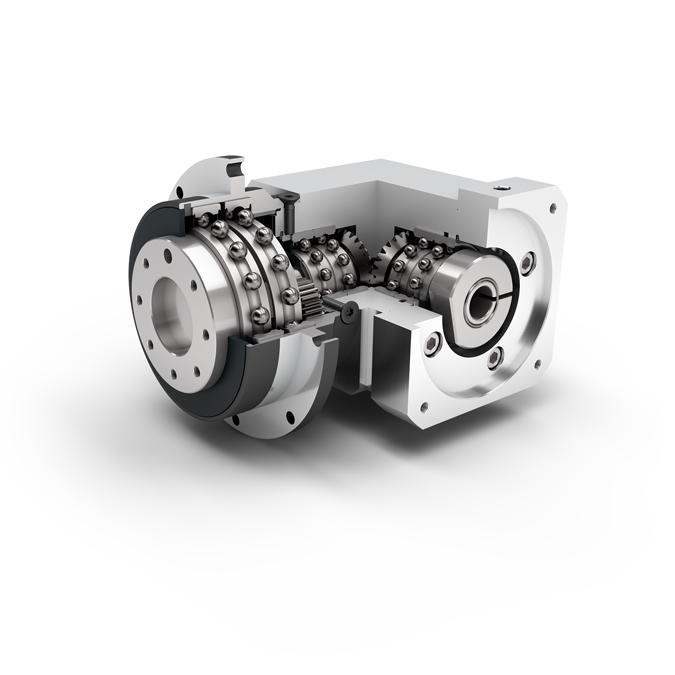

Optimized bearing design, excellent performance
| Reducer parameters | WPLFE064 | WPLFE90 | WPLFE110 | P | |
| transmission ratio |
3, 4, 5, 7, 8, 10 | one | |||
| transmission ratio | 9,12,15,16,20,25,32,40,64,100 | two | |||
| service life | h | twenty | |||
| T2N ×Service life at 0.88 | h | thirty | |||
| Efficiency at full load | % | 94/93 | |||
| Minimum operating temperature/maximum operating temperature | ℃ | -25/90 | |||
| Degree of protection | IP54 |
||||
| Standard lubrication | Grease (lifetime lubrication) | ||||
| Food grade lubrication | Grease (lifetime lubrication) | ||||
| Low temperature lubrication | Grease (lifetime lubrication) | ||||
| Installation position | arbitrarily | ||||
| Standard return clearance | arcmin | <16-<18 | <13-<15 | <11-<13 | |
| Torsional stiffness | Nm/arcmin | 2.9-9.9 | 5.8-29.5 | 15.9-69.0 | |
| Weight of reducer | kg | 1.8-2.1 | 4.5-5.3 | 10.5-12.5 | |
| Standard box surface | Box: steel - oxidized after heat treatment (black) |
||||
| Running noise | dB/(A) | seventy | seventy-three | seventy-five | |
| Maximum bending moment based on reducer input flange |
Nm | five | ten point five | twenty-six | |
Rated output torque
| WPLFE064 | WPLFE090 | WPLFE110 | I | P |
| fourteen | forty | eighty | three | one |
| nineteen | fifty-three | one hundred and five | four | |
| twenty-four | sixty-seven | one hundred and thirty | five | |
| twenty-five | sixty-five | one hundred and thirty-five | seven | |
| eighteen | fifty | one hundred and twenty | eight | |
| fifteen | thirty-eight | ninety-five | ten | |
| forty-four | one hundred and thirty | two hundred and ten | nine | two |
| forty-four | one hundred and twenty | two hundred and sixty | twelve | |
| forty-four | one hundred and ten | two hundred and thirty | fifteen | |
| forty-four | one hundred and twenty | two hundred and sixty | sixteen | |
| forty-four | one hundred and twenty |
two hundred and sixty | twenty | |
| forty | one hundred and ten | two hundred and thirty | twenty-five | |
| forty-four | one hundred and twenty | two hundred and sixty | thirty-two | |
| forty | one hundred and ten | two hundred and thirty | forty | |
| eighteen | fifty | one hundred and twenty | sixty-four | |
| fifteen | thirty-eight | ninety-five | one hundred |
Output shaft load
| WPLFE064 | WPLFE090 | WPLFE110 | ||
| Radial force of 20000h | N | five hundred and fifty | one thousand and four hundred | two thousand and four hundred |
| Axial force of 20000h | N | one thousand and two hundred | three thousand | three thousand and three hundred |
| Radial force of 30000h | N | five hundred | one thousand and two hundred | two thousand and one hundred |
| Axial force of 30000h | N | one thousand and two hundred | three thousand | three thousand and three hundred |
| 20000 h tilting moment | Nm | twelve | forty-six | one hundred and nine |
| 30000h inclination moment | Nm | eleven | forty | ninety-six |
Geometric dimensions
| WPLFE064 | WPLFE090 | WPLFE110 | P | ||
| Pitch circle diameter of mounting hole at output end | mm | thirty-one point five | fifty | sixty-three | |
| Output flange retaining boss diameter | mm | sixty-four | ninety | one hundred and ten | |
| Diameter of output flange | mm | eighty-six | one hundred and eighteen | one hundred and forty-five | |
| Total length | mm | one hundred and ten | one hundred and forty-nine | one hundred and ninety-eight point five | one |
| mm | one hundred and twenty-two point five | one hundred and sixty-five point five | two hundred and twenty-five point five | two | |
| Length of output flange | mm | nineteen point five | thirty | twenty-nine |
